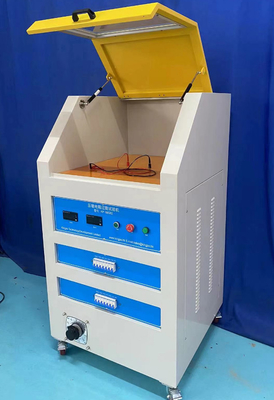

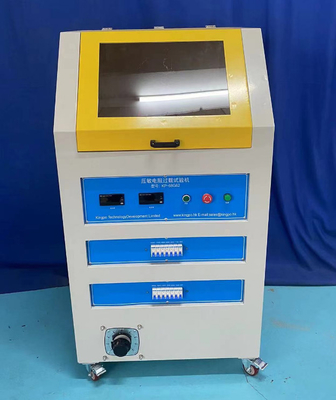

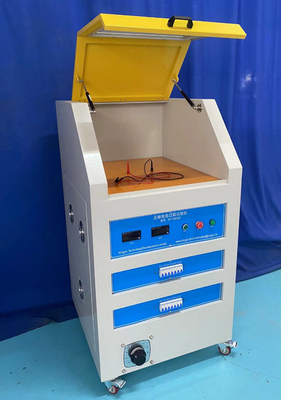

IEC 62368-1 Lampiran G.8.2.2 Standard Varistor Overload Tester dengan ukuran 900*800*1550mm
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | KingPo |
| Sertifikasi: | Calibration Certificate |
| Nomor model: | KP-68G82 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | To be quoted |
| Kemasan rincian: | paket karton keselamatan atau kotak kayu lapis |
| Waktu pengiriman: | 30 Hari Kerja |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 3 set per bulan |
|
Informasi Detail |
|||
| Standar: | IEC 62368-1 Lampiran G.8.2.2 | Dimensi: | 900*800*1550mm |
|---|---|---|---|
| Negara Asal: | Cina | Jaminan: | 1 Tahun |
| Menyoroti: | IEC 62368-1 Varistor Overload Tester,Annex G.8.2.2 Varistor Overload Tester,900x800x1550mm Varistor Overload Tester |
||
Deskripsi Produk
R1 (16*Vr) : 16*240=3840Ω, arus: 2Vr/R1=0,125A;
8x resistance R2 (8*Vr) : 8*240=1920Ω, arus: 2Vr/R2=0.25A;
4x resistensi R3 (4*Vr) : 4*240=960Ω, arus: 2Vr/R3=0,5A;
2x resistensi R4 (2*Vr) : 2*240=480Ω, arus: 2Vr/R4=1A;
1x resistance R5 (1*Vr) : 1*240= 240ω, arus: 2Vr/R5=2A;
0.5 x resistensi R6 (0,5*Vr) : 0,5*240=120Ω, arus: 2Vr/R6=4A;
0.25 x resistensi R7 (0,25*Vr) : 0,25*240=60Ω, arus: 2Vr/R7=8A;
Tegangan Vr: 220V, 2Vr:440V
Resistensi R1 (16*Vr) : 16*220=3520Ω, arus: 2Vr/R1=0.125A;
8x resistance R2 (8*Vr) : 8*220=1760Ω, arus: 2Vr/R2=0.25A;
4x resistensi R3 (4*Vr) : 4*220=880Ω, arus: 2Vr/R3=0,5A;
2x resistensi R4 (2*Vr) : 2*220=440Ω, arus: 2Vr/R4=1A;
1x resistance R5 (1*Vr) : 1*220= 220ω, arus: 2Vr/R5=2A;
0.5x resistensi R6 (0,5*Vr) : 0,5*220=110Ω, arus: 2Vr/R6=4A;
0.25x resistensi R7 (0,25*Vr) : 0,25*220=55Ω, arus: 2Vr/R7=8A;
3 Regulator tegangan
Tegangan: 0-600V diatur, akurasi tegangan ±1,5%
