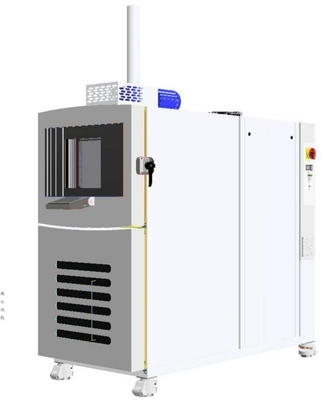

50Hz Programmable Environmental Test Chamber with SUS304 Stainless Steel

MOQ: 1
harga: To be Quoted
kemasan standar: Paket Karton Keamanan atau Kotak Kayu Lapis
Periode pengiriman: 30 hari kerja
metode pembayaran: T/t
Kapasitas Pasokan: 20 set per bulan
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal
Cina
Nama merek
kingpo
Sertifikasi
iso9001 ce
Wadah:
Kedap udara insulasi ganda
Bahan:
Pelat baja stainless Sus304 berkualitas tinggi
tingkat pemanasan:
1.0 ~ 3.0 ° C/mnt
Laju pendinginan:
1 ~ 1,5 ° C/mnt
Suhu. ketepatan:
± 0,1 ° C.
Catu daya:
AC220V 50Hz/380V 50Hz
Menyoroti:

50Hz programmable test chamber

,

SUS304 stainless steel test chamber

,

environmental test chamber with warranty

Deskripsi Produk
50HZ Programmable Environmental Test Chamber - Climatic Test Machine, Temperature Humidity Chamber
Key Attributes
Attribute Value
Container Double-insulated airtight
Material High-quality SUS304 stainless steel plate
Heating rate 1.0~3.0°C/min
Cooling rate 1~1.5°C/min
Temperature Accuracy ± 0.1 °C
Power supply AC220V 50HZ/380V 50HZ
Product Overview

This programmable constant temperature humidity test chamber (MHU) simulates temperature and humidity environments for testing electrical and electronic products' adaptability to environmental conditions. It evaluates changes in electric capability and mechanical properties, as well as sample tolerance to corrosion.

Key Features
  • Premium matte-finished surface with planar non-reactive handles for safe, reliable operation
  • Rectangular glass viewing window with anti-sweat heater and high-brightness PL light
  • Double-insulated airtight container effectively prevents temperature leakage
  • External water supply system with automatic reuse capability
  • French Tecumseh compressor circulatory system with environmentally friendly refrigerants (R23, R404, R507)
  • Imported LCD display controller for measurements, settings, and time display
  • Multi-segment programmable control with QUICK or SLOP temperature/humidity adjustment
  • Built-in mobile pulley system with strong positioning screws for easy relocation
Technical Specifications
Model KP-100 KP-150 KP-225
Interior Dimension (mm) 500*500*400 500*600*500 500*600*750
Overall Dimension (mm) 880*840*1480 1020*1000*1720 1010*1100*1940
Model MHU-408 MHU-800 MHU-1000
Interior Dimension (mm) 600*850*800 800*1000*1000 1000*1000*1000
Overall Dimension (mm) 1210*1140*1960 1280*1480*2030 1480*1480*2030
Parameter Specification
Temperature range Model S: -70°C~+150°C
Model L: -40°C~+150°C
Humidity Range 20% ~ 98% R.H
Humidity bias +2~-3%R.H
Temperature fluctuation ≤±0.5°C
Temperature uniformity ≤2°C
Heating rate 1.0~3.0°C/min
Cooling rate 1~1.5°C/min
Construction Details
  • Shell material: High-quality SUS304 stainless steel plate
  • Liner material: High-quality SUS304 stainless steel plate
  • Insulation materials: Ultra-fine glass fiber insulation cotton / rigid polyurethane foam
  • Door seal: Double resistance to high and low temperature aging silicone seal
System Components
  • Controller: JIANQIAO Special color touch screen (±0.1°C accuracy)
  • Circulatory system: Temperature low-noise motors with stainless steel multi-leaf centrifugal fan
  • Water supply: Electronic controller with automatic liquid control and water alarm
  • Humidification: External isolated stainless steel electric steam humidification
  • Dehumidification: Condensation method using dew point temperature
  • Refrigeration: Tecumseh compressor (France) with air-cooled cascade cooling
Safety & Standards
  • Comprehensive protection: Power overload, leakage, grounding, over-temperature (with voice prompts)
  • Fast fuse and compressor over-voltage protection
  • Standard features: Heat-tempered glass viewing window (300 * 200mm), lighting, two sample holders
  • Power supply: AC220V*50HZ/380V*50HZ
  • Ambient temperature range: 15°C~+30°C ≤85%R.H
