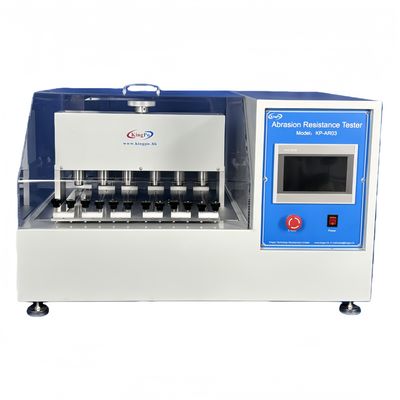

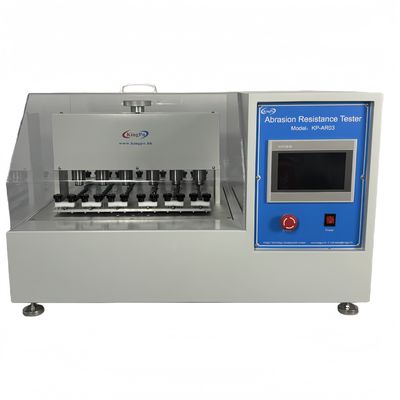

UL 719 Abrasion resistance tester of jacket on flat cable

MOQ:	1
harga:	To be quoted
kemasan standar:	kotak alat plastik saty atau paket kayu lapis
Periode pengiriman:	35 hari kerja
metode pembayaran:	T/t
Kapasitas Pasokan:	200 per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

Nama merek

kingpo

Sertifikasi

ISO 17025

Nomor model

KP-AR03

Menyoroti:

UL 719 abrasion resistance tester

jacket abrasion tester for flat cable

electrical safety test equipment with warranty

Deskripsi Produk

UL 719 Abrasion resistance tester of jacket on flat cable

7.14 Abrasion resistance test of jacket on flat cable

7.14.1 Specimen Preparation

Six straight untwisted 15 inch or 380 mm specimens are to be cut from a sample length of finished cable
They are to be laid flat and parallel to one another on a flat horizontal steel plate
Specimens are to be individually secured in place at their ends
An abrasion tool consisting of a weighted solid steel right-circular cylinder with three parallel teeth is used
The tool is supported above each specimen with teeth perpendicular to the specimen's longitudinal axis
The support minimizes tool play during the abrasion process

7.14.2 Test Procedure

The plate with specimens is reciprocated horizontally in simple harmonic motion at 30 cycles per minute
Motion direction is parallel to the specimens' longitudinal axes
Stroke centers on abrasion tools with length of 6 inches or 150 mm

7.14.3 Test Execution

Test begins with plate at rest at either end of stroke
Stroke counter is set at zero at beginning of cycle
Weight is added to each abrasion tool to achieve 3 lbf ±0.5 ozf (13.34 ±0.14 N or 1.36 ±0.01 kgf) downward force
Tools are lowered gently onto specimens and reciprocation begins immediately
Test continues until:
- One or more tools wear through outer covering, OR
- 70 full cycles complete without any tool wearing through
Operator must be present to:
- Observe wear
- Brush away debris accumulation
- Record number of strokes when jacket wears through (if applicable)
