connector test equipment

MOQ:	1
harga:	to be quoted
kemasan standar:	kotak kayu lapis
Periode pengiriman:	25 HARI KERJA
metode pembayaran:	T/T
Kapasitas Pasokan:	20 unit per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

Nama merek

kingpo

Sertifikasi

ISO 17025 calibration certificate

Menyoroti:

connector test equipment with warranty

lamp cap gauge tester

electrical connector testing tool

Deskripsi Produk

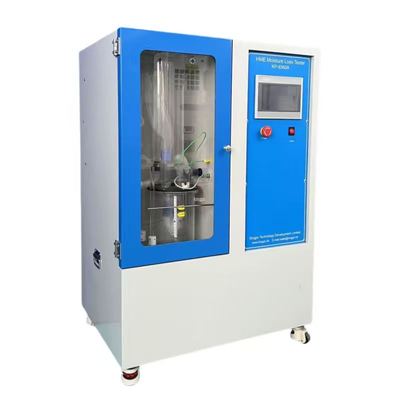

Connector Test Equipment Overview

Specialized equipment designed to measure moisture loss values in inline connectors during operational use, ensuring product reliability and performance standards.

Equipment Control and Operation

Control Functions

Power Off/On: Controls main equipment power supply
Emergency Stop: Immediately halts all equipment operations in emergency situations

Test Operation Procedure

Activate power switch (Off/On) to access system login interface
Select system entry to reach main operation page

Breathing System Configuration

Breathing Settings

Function	Description
Tidal Volume Selection	Set tidal volume parameter - breathing frequency automatically adjusts once volume is confirmed
Homing Function	Return to origin position - testing should always initiate from origin point
Breathe Start/Stop	Control breathing cycle initiation and termination

Breathing Time Management

Control	Function
Timing Switch	Activate timer - heating and breathing automatically cease when timing completes
Time SV	Set breathing duration parameters
Time PV	Display current breathing time progress

Flow Monitoring System

Total Exhalation Volume (V): Cumulative breathing volume automatically calculated from set tidal volume and breathing duration. For accurate results, set breathing time first, then configure tidal volume.

Heating System Controls

Temperature Regulation

Control	Function
Heating Switch	Activate heating system functionality
Sink Temperature: SV	Set water tank heating temperature parameters
Sink Temperature: PV	Display current water tank temperature readings
Box Temperature: SV	Set chamber heating temperature parameters
Box Temperature: PV	Display current chamber temperature readings

Temperature Monitoring

Real-time temperature curve display showing one-hour historical data with color-coded differentiation between water tank and chamber temperatures.

Weighing and Measurement System

Weighing Controls

Function	Description
Current Weight	Real-time weight measurement display
Zero/Tare	Tare functionality - perform tare operation before weighing to ensure measurement accuracy
Weight	Weighing activation - click to initiate weighing, click again to cancel
Records Delete	Clear recorded weight data - erases stored m0, m1, m2 values
Record	Weight recording function

Weight Recording Protocol

m0: Record pre-test baseline weight measurement
m1, m2: Record post-test weight measurements for comparison

Moisture Loss Rate Calculation

Automated calculation system determines moisture loss rate using recorded weights (m0, m1, m2) and cumulative volume (V). Manual input capability available for customized calculations and verification.
